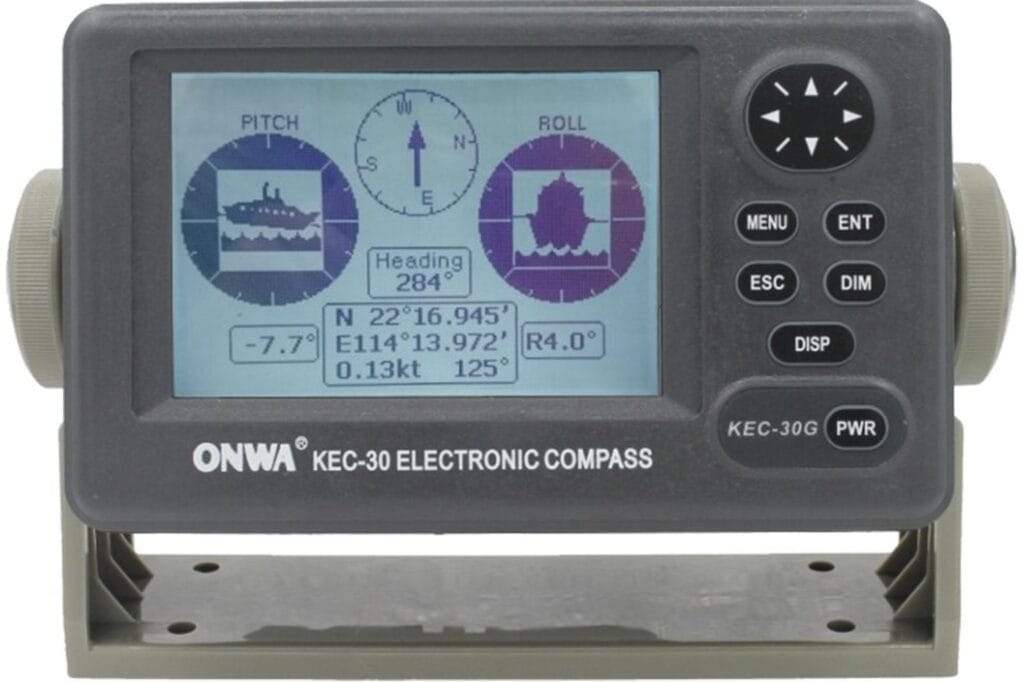

An E-Compass (Electronic Compass) is a digital device that detects the Earth’s magnetic field to determine direction, replacing traditional magnetic compasses with higher precision and integration into modern electronics.
🔹 How an E-Compass Works
- Magnetometer → Measures Earth’s magnetic field (X, Y, Z axes).
- Tilt Compensation (Accelerometer) → Adjusts for device orientation.
- Microprocessor → Calculates heading (0° to 360°).
- Output → Displays direction on a screen or sends data to a device.
Key Features:
✅ Digital output (I²C, SPI interfaces).
✅ Works in smartphones, drones, and navigation systems.
✅ More accurate than analog compasses (with proper calibration).
🔹 Types of E-Compass Sensors
| Sensor Type | How It Works | Used In |
|---|---|---|
| Magnetoresistive (MR) | Changes resistance in magnetic fields | Cars, industrial systems |
| Fluxgate | Detects magnetic flux variations | Aircraft, ships |
| Hall Effect | Measures voltage from magnetic fields | Smartphones, drones |
| MEMS-Based | Miniature, low-power | Wearables, IoT devices |
🔹 E-Compass vs. Traditional Compass
| Feature | E-Compass | Magnetic Compass |
|---|---|---|
| Accuracy | High (with calibration) | Moderate (affected by metals) |
| Integration | Works with GPS, gyros | Standalone |
| Power | Requires electricity | No power needed |
| Cost | More expensive | Cheap |
| Use Case | Smartphones, drones | Hiking, basic navigation |
🔹 Applications of E-Compass
- Smartphones (Google Maps, AR apps)
- Drones & UAVs (autonomous navigation)
- Automotive (navigation systems, ADAS)
- Robotics (direction control)
- Marine & Aviation (backup navigation)
🔹 Calibration & Common Issues
Why Calibration is Needed?
- Nearby magnets/metal can distort readings.
- Sensor drift over time requires recalibration.
How to Calibrate?
- Smartphone Method → Rotate device in a figure-8 motion.
- Manual Calibration → Follow manufacturer steps (for drones/vehicles).
Common Problems & Fixes
🔧 Incorrect Readings? → Move away from magnets/electronics.
🔧 Not Responding? → Check power & connections.
🔧 Drifting Over Time? → Recalibrate periodically.
🔹 Future of E-Compass Tech
- AI-Assisted Navigation → Better filtering of interference.
- Quantum Compasses (ultra-precise, no magnetic reliance).
- Integration with 5G & IoT → Smarter location-based services.
