Pulse oximeters (SpO₂ sensors) are lifesaving medical devices that measure blood oxygen levels non-invasively. But how exactly do they work? In this detailed guide, we’ll break down the science behind SpO₂ sensors, their components, accuracy factors, and common misconceptions—helping you understand this essential health tool.

Table of Contents

1. What Is an SpO₂ Sensor?
2. How Does an SpO₂ Sensor Work?
   • Principle of Pulse Oximetry
   • Light Absorption & Hemoglobin
   • Photodetector & Signal Processing
3. Key Components of an SpO₂ Sensor
4. Factors Affecting SpO₂ Accuracy
5. Common Myths About Pulse Oximeters
6. FAQs About SpO₂ Sensors
7. Final Thoughts

What Is an SpO₂ Sensor?

An SpO₂ sensor (peripheral capillary oxygen saturation sensor) is a medical device that estimates the oxygen saturation in a person’s blood using light-based technology. It is commonly found in:

• Fingertip pulse oximeters
• Hospital-grade monitors
• Wearable fitness trackers (e.g., smartwatches)

It provides a quick, painless way to monitor hypoxemia (low oxygen levels), especially in patients with COPD, COVID-19, or sleep apnea.

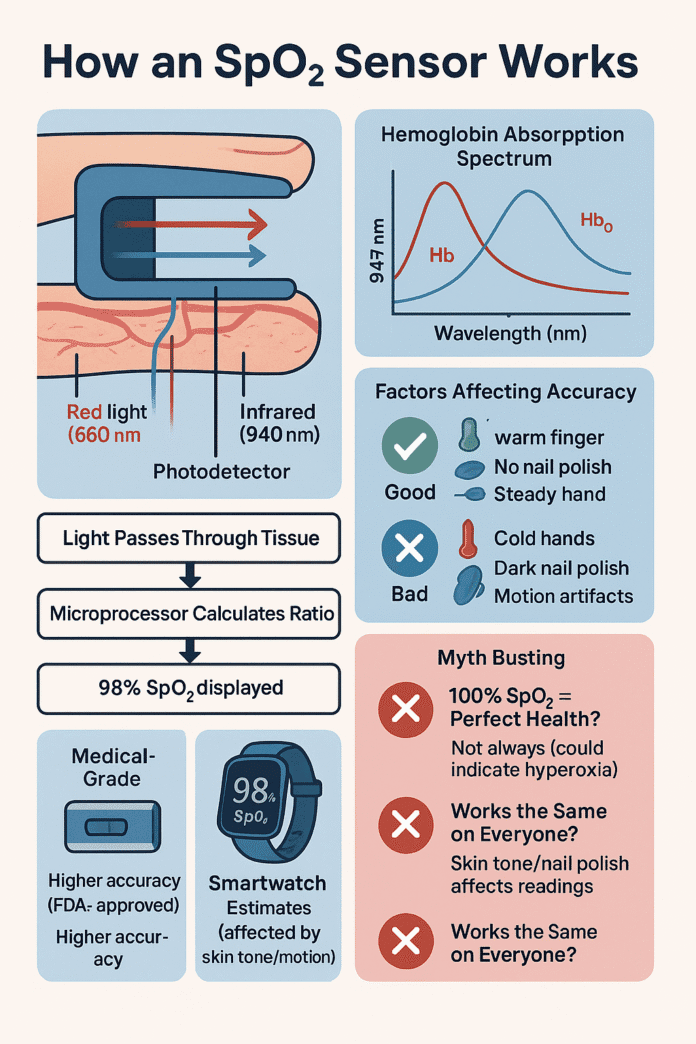

How Does an SpO₂ Sensor Work?

1. Principle of Pulse Oximetry

SpO₂ sensors use photoplethysmography (PPG), a technique that measures blood volume changes in tissues. Here’s how it works:

1. Two Light Wavelengths Emitted:
   • Red light (~660 nm): Absorbed more by deoxygenated hemoglobin (Hb).
   • Infrared light (~940 nm): Absorbed more by oxygenated hemoglobin (HbO₂).
2. Light Passes Through Tissue:
   • The sensor shines light through a thin body part (finger, earlobe).
   • Some light is absorbed by blood, while the rest passes through to a photodetector.
3. Photodetector Measures Light Absorption:
   • The sensor calculates the ratio of absorbed red vs. infrared light.
   • Oxygen saturation is estimated using Beer-Lambert Law (light absorption principles).

2. Light Absorption & Hemoglobin

• Oxygenated blood (HbO₂) absorbs more infrared light.
• Deoxygenated blood (Hb) absorbs more red light.
• The sensor compares these ratios to estimate SpO₂ percentage.

3. Photodetector & Signal Processing

• The photodetector converts light signals into electrical pulses.
• A microprocessor filters out noise (e.g., ambient light, motion artifacts).
• The final SpO₂ value and pulse rate are displayed.

Key Components of an SpO₂ Sensor

Factors Affecting SpO₂ Accuracy

Several factors can lead to false readings:

Common Myths About Pulse Oximeters

❌ Myth 1: “SpO₂ sensors measure actual oxygen in blood.”
✅ Fact: They estimate oxygen saturation based on light absorption.

❌ Myth 2: “All pulse oximeters are equally accurate.”
✅ Fact: Medical-grade devices are more reliable than cheap consumer models.

❌ Myth 3: “A reading of 100% means perfect oxygen levels.”
✅ Fact: 95–100% is normal; >100% may indicate hyperoxia (too much oxygen).

FAQs About SpO₂ Sensors

Q1. Can SpO₂ sensors detect COVID-19?

No, but low SpO₂ (<90%) can indicate severe respiratory issues, including COVID-19 pneumonia.

Q2. Why does my SpO₂ drop during sleep?

Mild dips are normal, but consistent drops may suggest sleep apnea.

Q3. Are smartwatch SpO₂ readings accurate?

They provide estimates but are less reliable than medical oximeters.

Final Thoughts

SpO₂ sensors are life-saving tools that use light absorption to estimate blood oxygen levels. While highly useful, factors like poor circulation, dark skin, or nail polish can affect accuracy. For medical decisions, always consult a healthcare professional.

🔹 Want to check your SpO₂ accurately? Use a FDA-approved pulse oximeter and follow best practices for reliable results!
